产品中心product

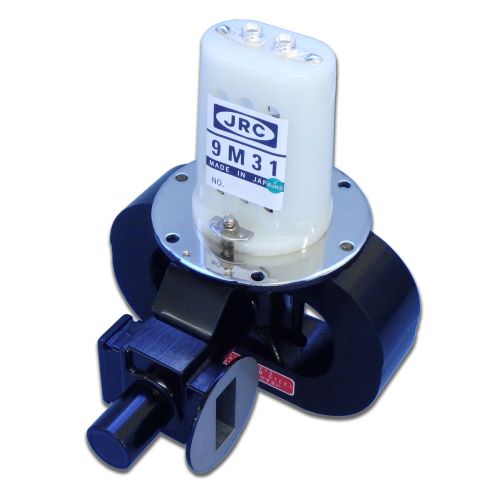

9M31

NJRC
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
Frequency
9380 ~ 9440 MHz (Fixed)
Output power (Peak)
50 kW
Duty cycle / Pulse duration
0.001 / 1.00 μsec
Other features
RoHS compliant
Items Parameters
Anode voltage (Peak) 12 kV
Anode current (Peak) 12 A
Heater voltage 6.3 V (@ Preheat)
Heater current 1 A
RF output interface Waveguide : WR84
Power supply interface Pin socket type
Cooling Air / Forced air
Weight 1.9 kg

Download File
