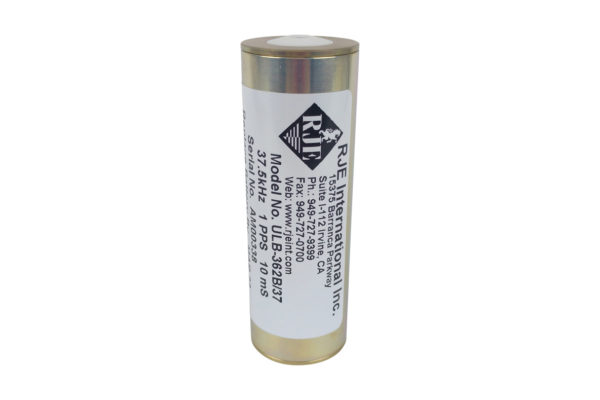

ULB-362 FULL OCEAN DEPTH ACOUSTIC LOCATION BEACON

The ULB-362 is a compact, cost-effective, full ocean depth underwater emergency location beacon designed for applications where size is critical. Available in 27kHz, 37kHz and 45 kHz, the ULB-362 can send an acoustic signal for up to 30 days.

The ULB-362 replaces the Benthos ELP-362A and typical applications include use on ROVs, AUVs, ordnance and equipment recoveries.


OPERATING FREQUENCY


27, 37.5, 45kHz (+/- 1kHz)
ACOUSTIC OUTPUT
160.5dB re 1μPa @ 1m
RANGE
1 to 2km based on Sea State
ACTIVATION
Water Switch or other options
POWER SOURCE
Lithium Battery with a 6-Year Shelf Life
BATTERY LIFE
30 Days
OPERATING DEPTH
20,000ft (6,096m)
HOUSING MATERIAL
Aluminum
Housing Dimensions
LENGTH
4.00in (10.16cm)
WEIGHT
5.95oz (168g) max
Specifications are subject to change without notice.
