- Record image of two radars and two ECDIS.
- Three separate channels for audio input:
l One for up to 4 microphones
l One for up to 4 microphones
l One for 2 VHF audio
- As standard configuration, below ports provided:
l Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
l Digital port x 64 ch (DEU)
l Analog port x 8 ch (DEU)
- PC software and Phone APP are available for playback and realtime monitoring.
- CCS type approval.
- DNV-GL type approval.
- VR type approval.
- RS type approval.
| Data Acquisition Unit (DAU) | ||
| Interface: | Ethernet IEC61162-450 | 7 ch |
| Serial IEC61162-1/2, RS422 | 8 ch | |
| VHF Audio | 2 ch | |
| Microphone | 8 ch | |
| Remote Alarm Unit | 1 ch | |
| USB | 1 ch | |
| DC 24V output: | Remote Alarm Unit (RAU) | 1 ch |
| Fixed Protective Capsul (FPC) | 1 ch | |
| Float-Free Capsule (FFC) | 1 ch | |
| Recording Duration : | min 720 hours | |
| Reserve Battery Capacity: | min 2 hours | |

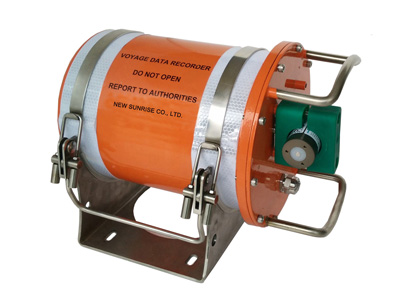

| Fixed Protective Capsule (FPC) | Memory | 64 GB |
| Recording Duration | min 48 hours | |
| Float-Free Capsule (FFC) | Memory | 64 GB |
| Recording Duration | min 48 hours | |
| Battery Capacity | min 168 hours | |
| Battery Life | 5 years | |
| Data Extension Unit (DEU) | ||
| Interface: | Analog Input | 8 ch |
| Digital Input | 64 ch | |
| Serial IEC61162-1/2, RS422 | 16 ch | |
| Ethernet | 1 ch | |
| Video Interface Unit (VIU) | ||
| Interface: | VGA | 1 -2 ch |
| Ethernet | 1-2 ch | |
| Remote Alarm Unit (RAU) | Serial IEC61162-1/2, RS422 | 1 ch |
| POWER SUPPLY | Data Acquisition Unit (DAU) | AC100V/220V, 0.5～1.5A, 50/60Hz |
| Data Extension Unit (DEU) | DC24V, 0.5A | |
| Video Interface Unit (VIU) | DC24V, 0.3A |
