S-band TR Limiters

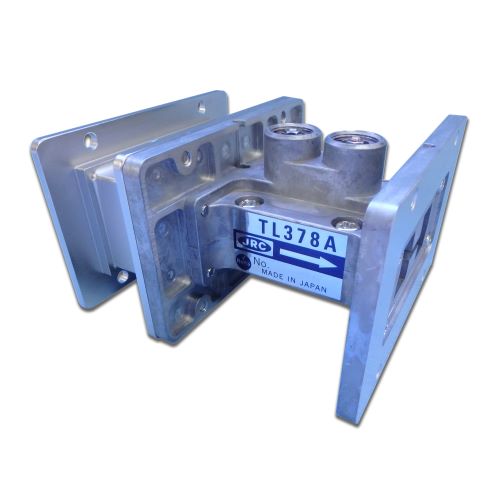

TL378A

ItemsParametersFlat leakage power20 mW max.Spike leakage power / energy400 mW max.Insertion loss1.5 dB max.RF interfaceWaveguide : WR284Weight0.8 kgDownload FileData sheet
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
Frequency
3000 ~ 3100 MHz
Input power (Peak)
100 kW
Recovery time
2 μsec max.
Other features
Radioisotope less
RoHS compliant
Items Parameters
Flat leakage power 20 mW max.
Spike leakage power / energy 400 mW max.
Insertion loss 1.5 dB max.
RF interface Waveguide : WR284
Weight 0.8 kg
