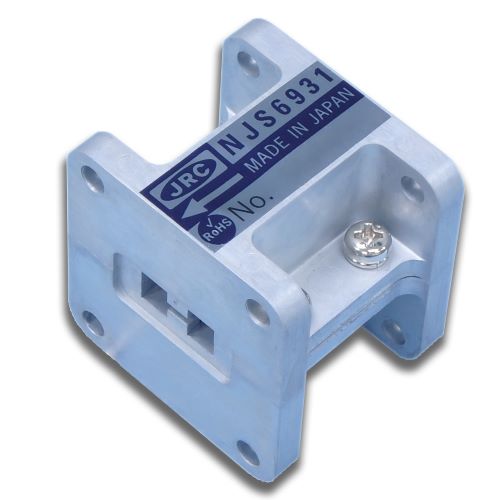

X-band Diode Limiters
NJS6931

ItemsParametersFlat leakage power (@ 2 kW)150 mW max.Spike leakage power (@ 2 kW)600 mW max.Insertion loss1.5 dB max.RF interfaceWaveguide : WR90Flange : UG-135/U EquivalentLength35…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION

Frequency
9300 ~ 9500 MHz
Input power (Peak)
4 kW
Recovery time
0.5 μsec max.
Other features
RoHS compliant
Items Parameters
Flat leakage power (@ 2 kW) 150 mW max.
Spike leakage power (@ 2 kW) 600 mW max.
Insertion loss 1.5 dB max.
RF interface Waveguide : WR90
Flange : UG-135/U Equivalent
Length 35 mm
Weight 0.19 kg
