JMA-5200Mk2 series

DESCRIPTIONJRCs new JMA-5200Mk2 continues the success of its predecessor, reaching a new level of performance, designed to seamlessly run radar images faster and more efficiently th…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION

DESCRIPTION

JRC's new JMA-5200Mk2 continues the success of its predecessor, reaching a new level of performance, designed to seamlessly run radar images faster and more efficiently than even before.

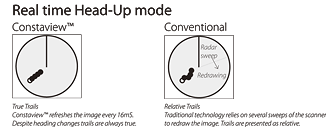

CONSTAVIEWTM

The second generation and patented Constaview™ is realised through the use of three high-speed processors (in-house Tornado™ technology). All info gathered by the radar is fully processed within a few milliseconds before displayed, generating a smooth image rotation when sailing in Head-Up mode. When changing to North-Up, the new radar image is displayed without any delay caused by the scanner rotation.


Image:CONSTAVIEW TM

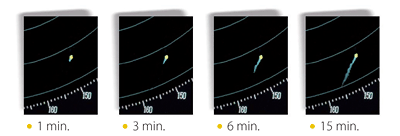

SELECT A TRAIL LENGTH

Other ship's movement and speed can be monitored from length and direction of their trails, primary serving for collision avoidance. The JMA-5200Mk2 integrates four different trail length modes, that will show a ship's course instantly, a unique operational feature that allows for more flexibility. Example real-time processing on the left.


Image:SELECT A TRAIL LENGTH


WIDE DYNAMIC RANGE RECEIVER

The new JMA-5200Mk2 series integrates a wide dynamic range receiver that, compared to conventional models, significantly improves the differentiation of noise and targets under sea clutter. The radar system overcomes different sources of unwanted signals, maintaining a constant level of clutter suppression.


Image:WIDE DYNAMIC RANGE RECEIVER




SPECIFICATION


Model JMA-
5212-4
JMA-
5212-6
JMA-
5222-7
JMA-
5222-9
JMA-
5212-4HS
JMA-
5212-6HS
IMO compliant
Display colour raster scan PPI
Range scale 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96 NM
Scanners
  Model NKE-
2103-4
NKE-
2103-6
NKE-
2254-7
NKE-
2254-9
NKE-
2103-4HS
JMA-
5212-6HS
Antenna length 4ft. 6ft. 7ft. 9ft. 4ft. 6ft.
Transmitting power 10kW 25kW 10kW
Transmitting
frequency
9410MHz ± 30MHz
Beam width 3db Hor. 1.8°, Ver. 20° Hor. 1.2°, Ver. 20° Hor. 1.0°, Ver. 20° Hor. 0.8°, Ver. 20° Hor. 1.8°, Ver. 20° Hor. 1.2°, Ver. 20°
Rotation speed 27rpm 24rpm 48rpm
Pulse width
(receive freq.)
0.08μs/2250Hz,
0.25μs/1700Hz,
0.5μs/1200Hz,
0.8μs/750Hz,
1.0μs/650Hz
0.07μs & 0.2μs/2250Hz,
0.4μs/1400Hz,
0.8μs/750Hz,
1.0μs/650Hz,
1.2μs/510Hz
0.08μs/2250Hz,
0.25μs/1700Hz,
0.5μs/1200Hz,
0.8μs/750Hz,
1.0μs/650Hz
Duplexer circular + diode limiter
Tuning automatic / manual
Ambient condition temperature -25° to 55°C, relative humidity 0% to 93% non-condensing
Processor
  Model NDC-1460
Bearing indication north-up / course-up / head-up
Presentation mode RM display with true trail, RM display with relative trail, TM display
EBL 2 (EBL1/EBL2) (center/independent) 000.0° - 359.9°, digital display
VRM 2 (VRM1/VRM2), 0.000 - 97.7 NM, digital display
Trail indication 4 stages: short, middle, long, super long (e.g. short: off/0.25/0.5/1/3/6/10/15-min and continuous)
Display (optional on JMA-5200Mk2 series BB)
  Model NWZ-164
LCD 1024 by 768 pixels (XGA)
Effective diameter ≥180mm
Connection cable 5m (processor-monitor)
Keyboard
  Model NCE-7699A
Connection cable 5m (processor-keyboard)
Installation cable CFQ-6912-20 standard L= 20m (optional up to 65m)
Power supply (voltage) 24V DC (21.6V to 31.2V DC)1)AC100-120/220-240V (50/60Hz,1φ)
Power consumption
(at max wind load)
typ.120W / max 600W typ.120W /
max 600W
typ.120W /
max 600W
Ambient condition temperature -15° to 55°C, relative humidity 0% to 93% non-condensing (processor, display, keyboard)
Optional items
2)NSK unit (gyro/log interface) NCT-4106A
3)ATA unit (30 targets) NCA-877A
3)Performance monitor NJU-85
3)AIS interface unit NQA-2155
Interswitch cable CFQ-5251 (5m) + CFQ-5351
Plotting function board NDB-44
AC rectifier NBA-5111 - AC100-120/220-240V (50/60Hz,1φ)
Cable 10/15/20/30/40/50/65 m CFQ-6912-10/15/20/30/40/50/65

1)AC power requires rectifier NBA-5111

2) Required if no high speed NMEA available

3) Performance monitor, Target Tracking, AIS must be fitted on ships compliant to IMO.


DISPLAY


Image:DISPLAY


SCANNERS


Image:SCANNERS


KEYBOARD AND PROCESSOR


Image:KEYBOARD AND PROCESSOR


WHAT'S STANDARD IN THE BOX?

1.Display1

2.Scanner

3.Keyboard

4.Processor

5.Cables

6.Spare parts

7.Manuals (English)

Cables

Which cables? Std. Max.
Display to processor1 5 m 5 m
Scanner to processor2 20 m 65 m
Keyboard to processor 5 m 25 m
Power cable for processor 5 m 5 m
Power cable for display 5 m 5 m

1.Not included in black box configuration

2.The total distance between scanner and processor must not exceed 65 m

All specifications are subject to change without notification.
