- Capable of voice communication and DSC (digital selective calling) facilities as well.
- Can be part of onboard GMDSS package for vessels of A1, A2 or A3.

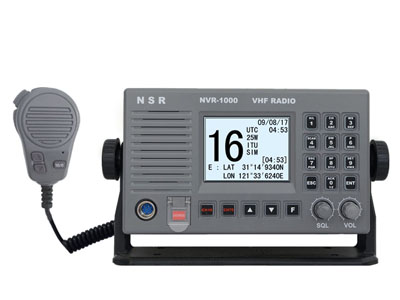

- Output for (S)VDR is also available on NVR-1000.
- 4-digital channels avaiable.
- Conforms to the regulations of ITU Regulation Appendix 18 (revised on WRC-12),
IMO MSC.1/Circ.1460, ITU-R M.493-14, IEC 61097-7, IEC 61097-3.
- CCS type approval.
- DNV-GL type approval.
- VR type approval.
|
TX Frequency:
|
156.025 ~ 157.425 MHz
|
|
RX Frequency:
|
156.050 ~ 163.275 MHz
|
|
Working Channel:
|
ITU (65)
|
|
DSC Watch Ch.:
|
CH70
|
|
TX Power:
|
25W (high) 1W (low)
|
|
RX Sensitivity:
|
≤2μV (SINAD=20dB)
|
|
Interface
|
|
|
- GPS Input:
|
RS-422, 4800bps
|
|
- VDR Output:
|
600Ω balanced
|
|
- Printer I/O:
|
RS-232, 4800bps
|
|
Power Supply:
|
13.8VDC (max 5.5A)
|
|
Weight:
|
1.5 kg
|
|
Size Dimension:
|
233 (W) × 137 (H) × 91 (D) mm
|
|
IP Grade:
|
IP22
|
